Model

Brand

MSI

Model

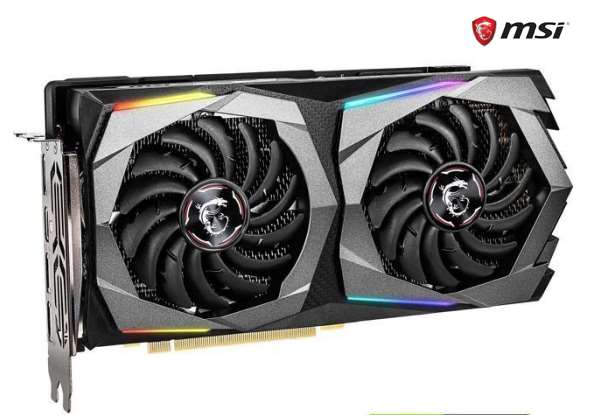

RTX 2060 GAMING Z 6G

Interface

Interface

PCI Express 3.0 x16

Chipset

Chipset Manufacturer

NVIDIA

GPU Series

NVIDIA GeForce RTX 20 Series

GPU

GeForce RTX 2060

Boost Clock

1830 MHz

CUDA Cores

1920

Memory

Effective Memory Clock

14 Gbps

Memory Size

6GB

Memory Interface

192-Bit

Memory Type

GDDR6

3D API

DirectX

DirectX 12

OpenGL

OpenGL 4.5

Ports

HDMI

1 x HDMI 2.0b

Multi-Monitor Support

4

DisplayPort

3 x DisplayPort 1.4

Details

Max Resolution

7680 x 4320

Virtual Reality Ready

Yes

Cooler

Double Fans

System Requirements

Power consumption: 190W
Recommended PSU: 500W

Power Connector

8-Pin

HDCP Ready

2.2

Features

Features

Twin Frozr 7 Thermal Design:
TORX Fan 3.0
– Dispersion fan blade: Steep curved blade accelerating the airflow.
– Traditional fan blade: Provides steady airflow to massive heat sink below.
Mastery of Aerodynamics: The heatsink is optimized for efficient heat dissipation, keeping your temperatures low and performance high.
Zero Frozr technology: Stopping the fan in low-load situations, keeping a noise-free environment.

RGB Mystic Light:
Customize colors and LED effects with exclusive MSI software and synchronize the look & feel with other components.

Dragon Center:
1 click to optimize all you need for smooth gaming.

Form Factor & Dimensions

Max GPU Length

247 mm

Card Dimensions (L x H)

9.72″ x 5.08″
