Cooling System: Fan
-
GPU Clock Speed: 1506 MHz
-
GPU Memory Size: 6 GB

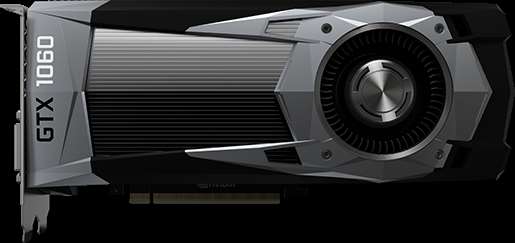

GEFORCE GTX 1060
GPU Engine Specs:
3 GB6 GB
11521280NVIDIA CUDA® Cores
15061506Base Clock (MHz)
17081708Boost Clock (MHz)
Memory Specs:
8 Gbps8 GbpsMemory Speed
3 GB GDDR56 GB GDDR5/XStandard Memory Config
192-bit192-bitMemory Interface Width
192192Memory Bandwidth (GB/sec)
Technology Support:
YesYesSimultaneous Multi-Projection
NoNoNVIDIA SLI® Ready
3.03.0NVIDIA GPU Boost
12 API with feature level 12_112 API with feature level 12_1Microsoft DirectX
YesYesVulkan API
4.54.5OpenGL
PCIe 3.0PCIe 3.0Bus Support
Windows 7-101, Linux, FreeBSDx86Windows 7-101, Linux, FreeBSDx86OS Certification
Display Support:
7680×4320@60Hz7680×4320@60HzMaximum Digital Resolution2
DP 1.43, HDMI 2.0b, Dual Link-DVIDP 1.43, HDMI 2.0b, Dual Link-DVIStandard Display Connectors
YesYesMulti Monitor
2.22.2HDCP
Graphics Card Dimensions:
4.378″4.378″Height
9.823″9.823″Length
2-Slot2-SlotWidth
Thermal and Power Specs:
9494Maximum GPU Temperature (in C)
120 W120 WGraphics Card Power (W)
400 W400 WRecommended System Power (W)4
6-Pin6-PinSupplementary Power Connectors
1 – Windows 10 requires November 2015 update or newer.
2 – 7680×4320 at 60Hz RGB 8-bit with dual DisplayPort connectors or 7680×4320 at 60Hz YUV420 8-bit with one DisplayPort 1.3 connector.
3 – DisplayPort 1.2 Certified, DisplayPort 1.3/1.4 Ready
4 – DisplayPort 1.2 Certified, DisplayPort 1.3/1.4 Ready
5 – Recommendation is made based on PC configured with an Intel Core i7 3.2 GHz processor. Pre-built system may require less power depending on system configuration.
2 – 7680×4320 at 60Hz RGB 8-bit with dual DisplayPort connectors or 7680×4320 at 60Hz YUV420 8-bit with one DisplayPort 1.3 connector.
3 – DisplayPort 1.2 Certified, DisplayPort 1.3/1.4 Ready
4 – DisplayPort 1.2 Certified, DisplayPort 1.3/1.4 Ready
5 – Recommendation is made based on PC configured with an Intel Core i7 3.2 GHz processor. Pre-built system may require less power depending on system configuration.
EAN Code: 0682131721490
